DFH 門套鎖舌合頁加工中心

分享到微信

×
單一設備雙功能加工。 Single equipment double function processing.
參數品牌:舒平精工
產品參數
品牌:舒平精工
型號:DFH
起訂量:1
單位:
我知道了
在線客服
產品詳情

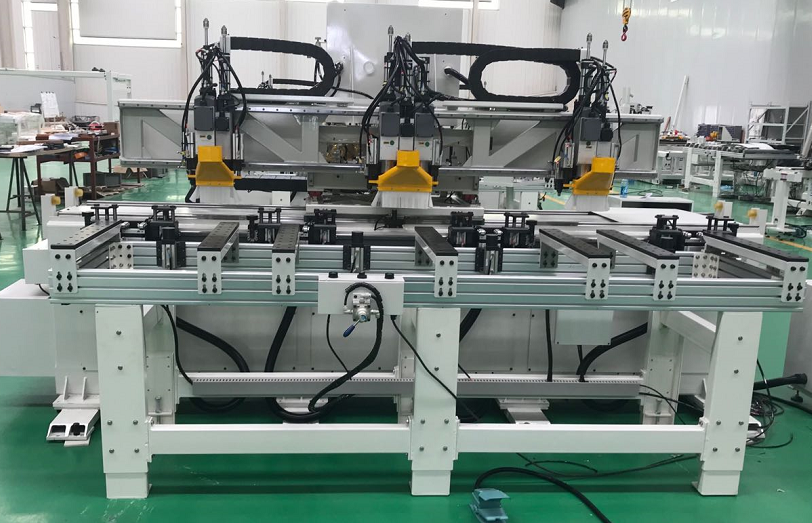

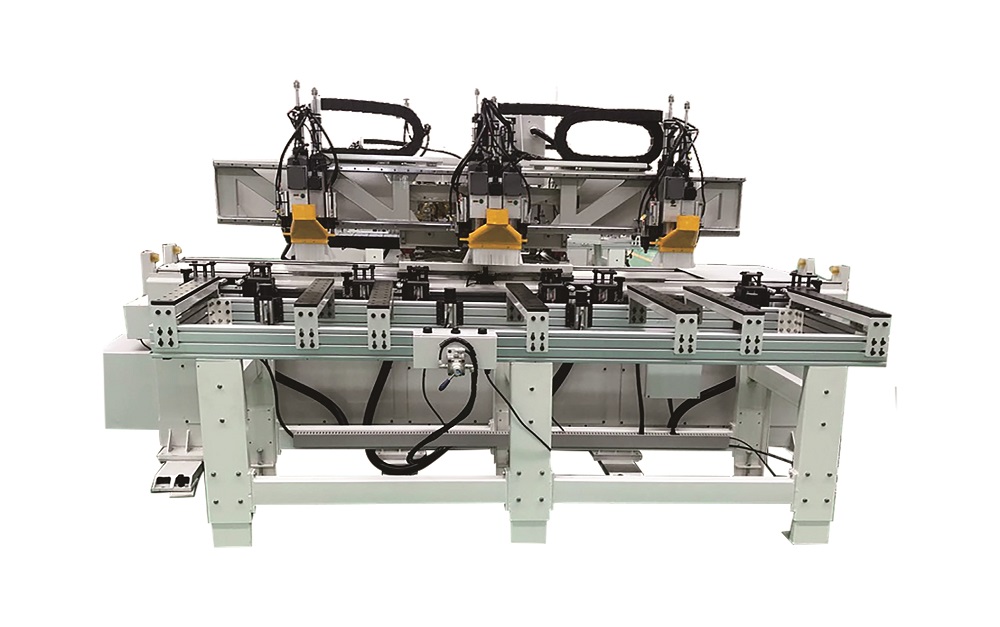

主機圖形:



加工范圍:

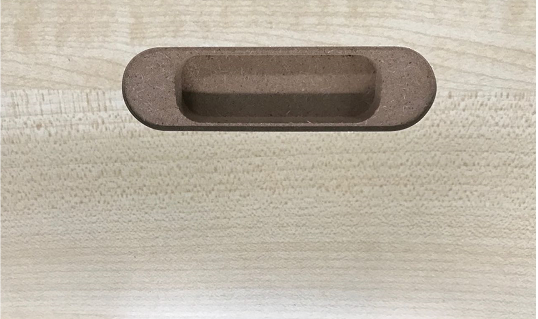

門套鎖舌、合頁安裝位置加工

Processing range: door cover lock tongue, hinge installation location processing


功能詳情:

Functional details:

細節圖

圖片1.png 圖片2.png


機械特點:

Characteristics

高效率:三機頭同時加工合頁,提高加工效率。

EfficiencyThree machine head processing hinge at the same time, improve the processing efficiency

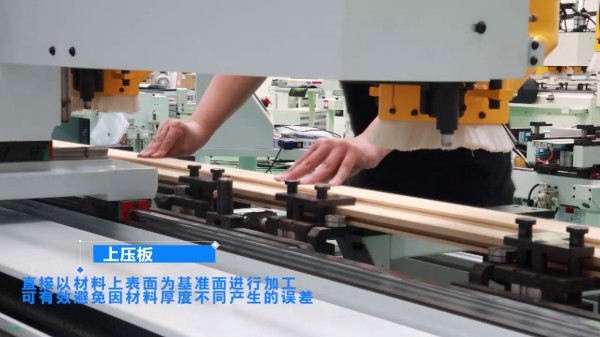

精確性:以材料的上表面為基準面進行加工,很好的避免因材料厚度不同產生的誤差。

Accuracy: The upper surface of the material is used as the datum level to avoid the errors caused by the different thickness of the material.

美觀性:機頭配備防爆銑刀,保證合頁安裝的美觀性。

AestheticsThe machine head is equipped with explosion-proof milling cutter to ensure the beauty of hinge installation

靈活性:可單機可連線

Flexible:Single machine can be connected


技術參數:

Technical parameters

工件長度    Working Lengh                                          1800-2600mm

工件寬度    Working Width                                          90-400mm

工件厚度    Working Thickness                                       20-45mm

鎖舌合頁用銑軸功率 Motor PowerLock tongue hinge with milling shaft)   3.0KWX3

鎖舌合頁用逆銑功率Motor PowerLock tongue hinge with reverse milling)  0.75KWX3

機械占地面積  Overall Dimensions                            4000X2000X2200mm

                                             (設備持續改進中,參數配置供參考)



DFH 門套鎖舌合頁加工中心
DFH 門套鎖舌合頁加工中心
DFH 門套鎖舌合頁加工中心
DFH 門套鎖舌合頁加工中心
DFH 門套鎖舌合頁加工中心

DFH 門套鎖舌合頁加工中心

分享到微信

×
單一設備雙功能加工。 Single equipment double function processing.
品牌:舒平精工
型號:DFH
起訂量:1
單位:
13661881907
在線客服
產品詳情

主機圖形:



加工范圍:

門套鎖舌、合頁安裝位置加工

Processing range: door cover lock tongue, hinge installation location processing


功能詳情:

Functional details:

細節圖

圖片1.png 圖片2.png


機械特點:

Characteristics

高效率:三機頭同時加工合頁,提高加工效率。

EfficiencyThree machine head processing hinge at the same time, improve the processing efficiency

精確性:以材料的上表面為基準面進行加工,很好的避免因材料厚度不同產生的誤差。

Accuracy: The upper surface of the material is used as the datum level to avoid the errors caused by the different thickness of the material.

美觀性:機頭配備防爆銑刀,保證合頁安裝的美觀性。

AestheticsThe machine head is equipped with explosion-proof milling cutter to ensure the beauty of hinge installation

靈活性:可單機可連線

Flexible:Single machine can be connected


技術參數:

Technical parameters

工件長度    Working Lengh                                          1800-2600mm

工件寬度    Working Width                                          90-400mm

工件厚度    Working Thickness                                       20-45mm

鎖舌合頁用銑軸功率 Motor PowerLock tongue hinge with milling shaft)   3.0KWX3

鎖舌合頁用逆銑功率Motor PowerLock tongue hinge with reverse milling)  0.75KWX3

機械占地面積  Overall Dimensions                            4000X2000X2200mm

                                             (設備持續改進中,參數配置供參考)
