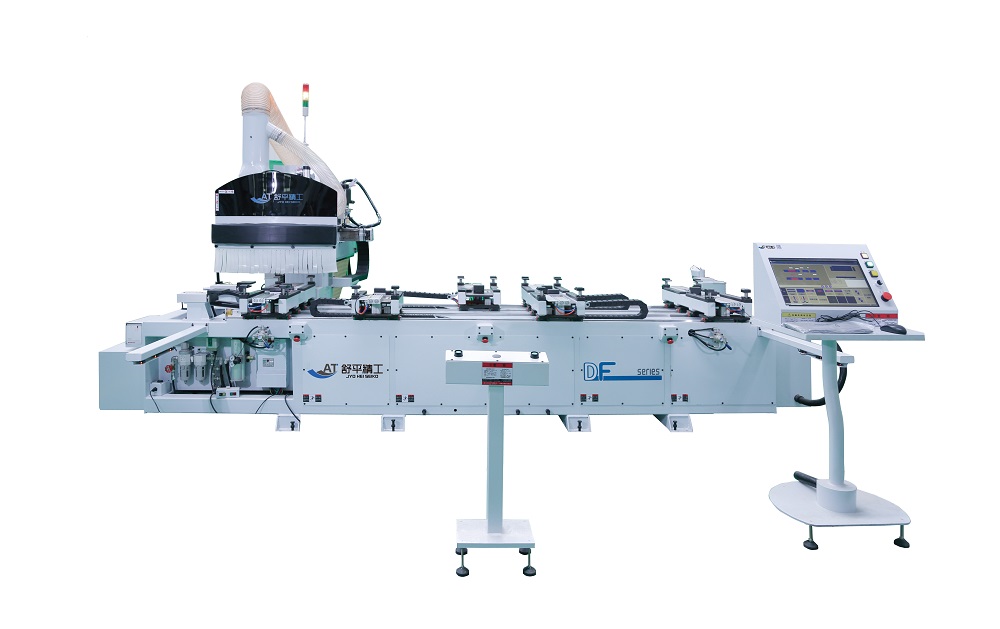

主機圖形：

加工范圍：

門套45/90度定長、鎖舌、合頁安裝位置加工；門套板端頭銑型，鉆孔加工

Processing range: door cover 45/90 degrees fixed length, lock tongue, hinge installation location processing; Door cover plate end milling, drilling processing

功能詳情：

Functional details：

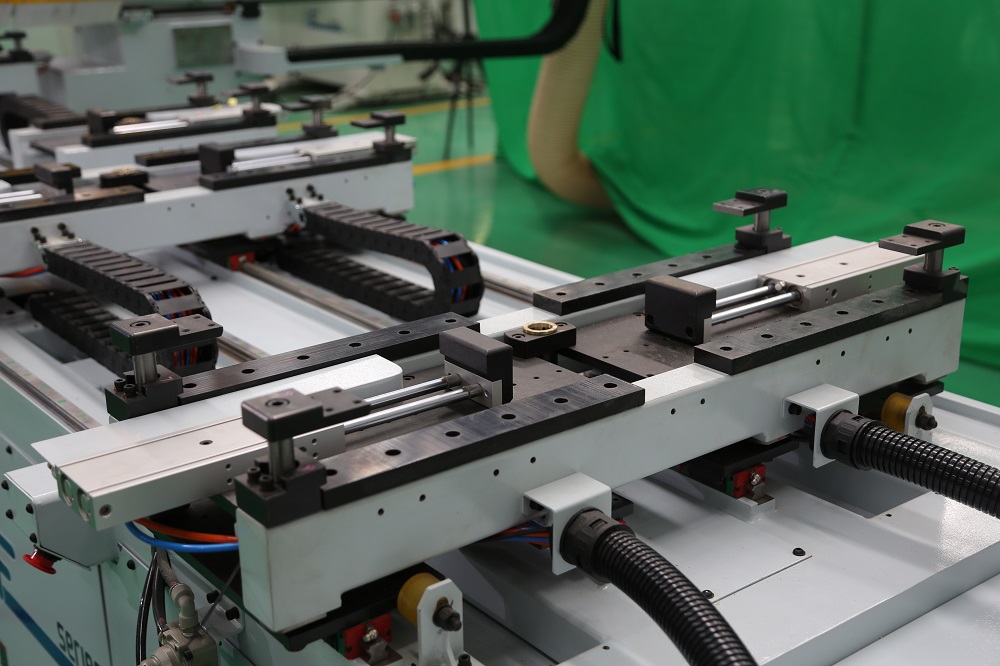

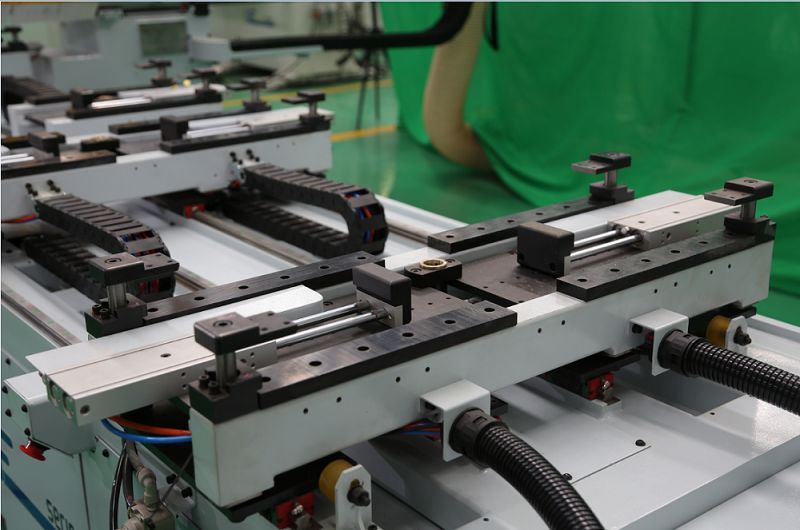

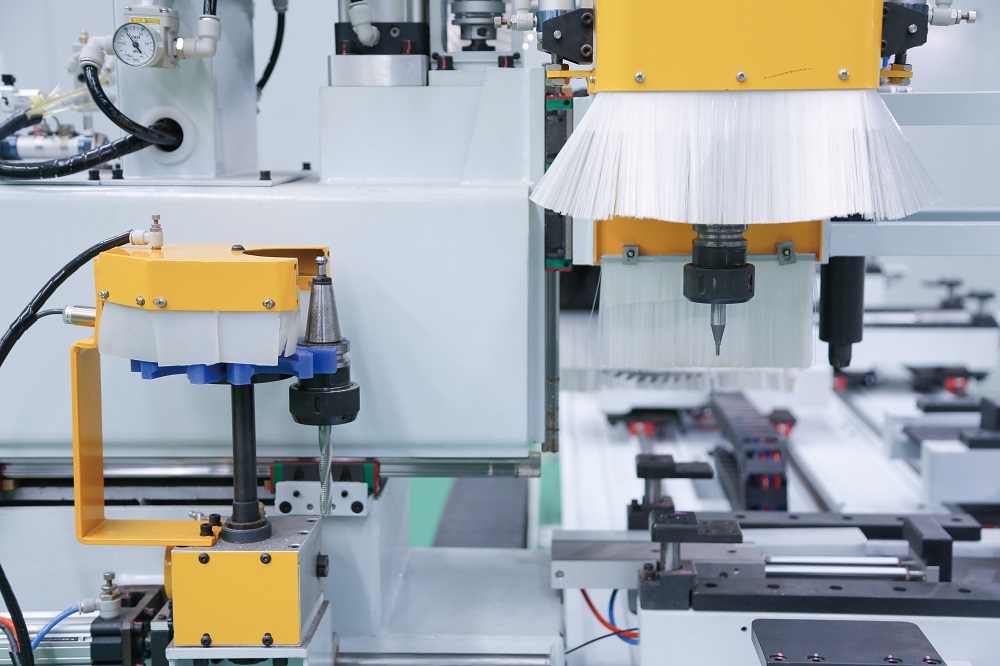

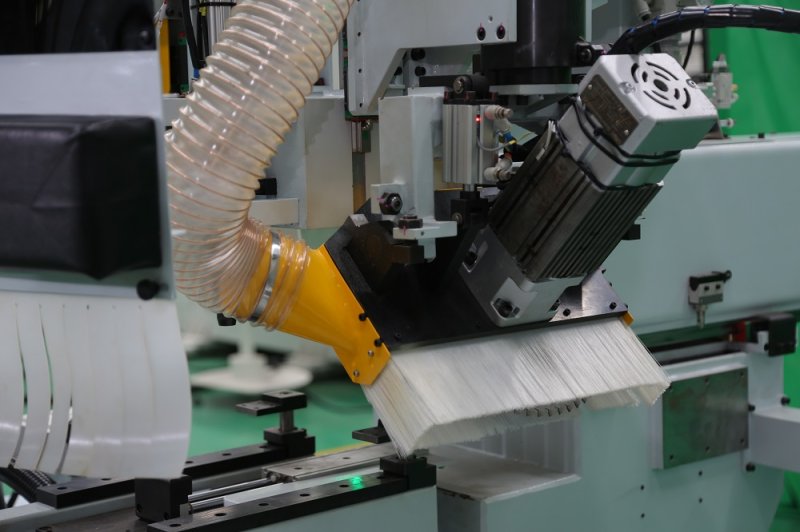

細節圖

機械特點：

Characteristics

多樣性：客戶可根據實際加工需求進行定制

Diversity: customers can be customized according to the actual processing needs

智能性：采用多模塊化組合，減少人工使用

Intelligence: the use of multiple modular combination, reduce manual use

高效性：自動換刀，滿足相關加工需求，提升加工效率

Extremely efficiency：automatic tool change, to meet the relevant processing requirements, improve the processing efficiency

精確性：加工精度誤差控制在±0.2mm公差范圍以內

Accuracy: the machining accuracy error is controlled within the tolerance range of ±0.2mm

技術參數：

Technical parameters

主銑軸電機  Electrospindle，standard with oil cooling & lubrication    8KW（自動供油霧化冷卻潤滑）

工件長度    Working Lengh                      3000mm

工件寬度    Working Width                      90-1200mm

工件厚度    Working Thickness                   18-40mm

鋸軸電機功率 Motor Power（Saw shaft）           3.2KW

機械占地面積  Overall Dimensions                 4500X3900X2300mm

                                             （設備持續改進中，參數配置僅供參考）
